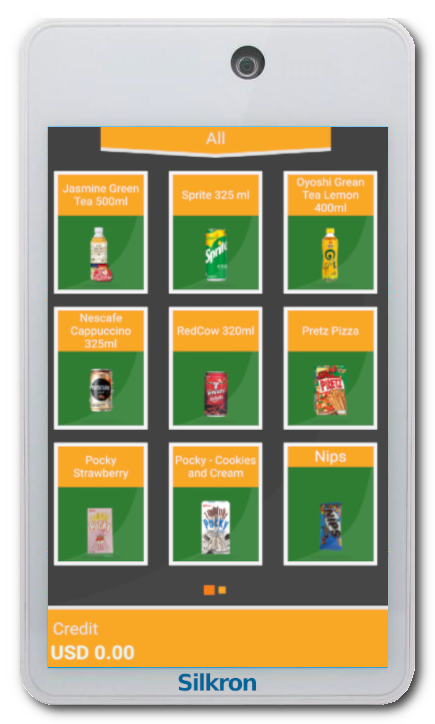

Vendroid All-in-One Screen [8-inch]

Silkron® Vendroid All-in-One Screen [8-inch] is a bundle of Vendron software optimized on embedded hardware built-in with 8-inch touch display, packed with optimum specification in compact size, to enable rapid and cost-effective implementation of telemetry, mobile payments / QR e-Wallets and smart vending capabilities onto vending machine and to retrofit into touch screen vending machine and connected vending machine.

Vendron All-in-One Screen [8-inch] can be easily configured with compatible vending machines, payment devices and other peripherals.


Technical Specification

Smart Vending Retrofit Vendroid Screen


Smart Vending Cloud Ready Android 7.1

Smart Vending Software

Vendron® 4, on Android 7.1 operating system, ready to connect to Vendron Cloud.

CPU

Rockchip® RK3288 processor (Quad-core Cortex-A17, up to 1.8GHz)

Memory & Storage

2GB & eMMC 8GB

Graphics & Display

8-inch LCD Capacitive Touch Display
800 x 1280 resolution

QR & Barcode Scanner

Built-in

Interfaces

USB 2.0 x 1
OTG Micro USB x 1
COM port (RS-232) x 2
COM ports (RS-485) x 1
LAN RJ45 (100M Ethernet) x 1

Wireless

4G mobile connectivity
(SIM card slot x 1)

Vending Data Interface

MDB / MDB-slave (optional)
Pulse (optional)
Support direct interface to vending machines of various OEM globally
EVA-DTS / DEX / UCS

Power Supply

DC +12V, 3A

Enclosure

Fanless Case, mountable externally on machine

Application Uses

  • Retrofit to old / conventional vending machines without touch display
  • Telemetry and QR mobile payments on vending machines with MDB & DEX / EVA-DTS
  • Minimal mechanical modification
  • Smart Locker Cabinets
  • Smart Fridges
  • Automatic Car Wash Machines
  • Any other self-service machines that require QR mobile payments

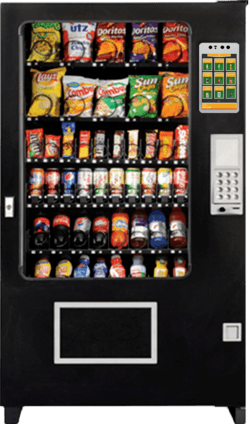

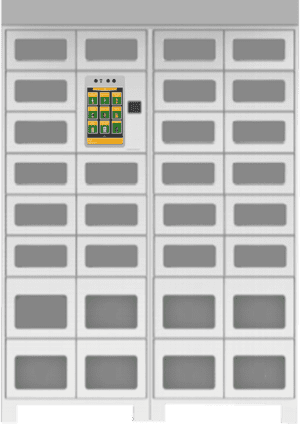

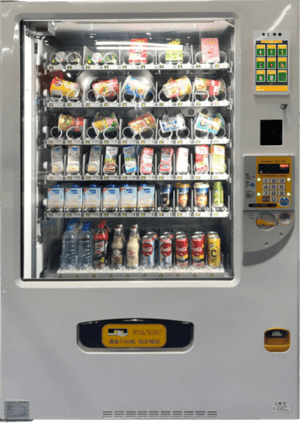

Vending Locker with Smart Vending Retrofit Vendroid Screen Vending Machine - AMS SENSIT 3 with Smart Vending Retrofit Vendroid Screen Vending Machine - FVM-GM60CBI-PWB with Smart Vending Retrofit Vendroid Screen



Please get in touch with us to know more about our Vendroid All-in-One Screen [8-inch] and how it can assist you in your smart vending machine deployment.

Note:
Silkron reserves the right to make changes to the specifications without prior notice.
All pictures shown are for illustration purpose only. Actual product may vary due to different specification or product enhancement.
Android, and the Android logo are trademarks, or registered trademarks of Google LLC in the United States and/or other countries.
*Other names and brands may be claimed as the property of others.
